150kw Hydraulic Drilling Rigs Suppliers

Description

Technical Data

More Details

Description

Quick Details

Applicable Industries:: Building Material Shops, Construction works , Energy & Mining

Showroom Location:: Philippines, Mexico, Russia

Condition:: New

Power Type:: Diesel

Place of Origin:: Shanghai, China

Brand Name:: Sollant

Usage:: Water Well

Dimension(L*W*H):: 6300*2300*2950

Weight:: 13000 KG

Warranty:: 1 Year

Marketing Type:: New Product 2021

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Other

Key Selling Points:: Long Service Life

Drilling Diameter:: 300mm, 140mm, 250mm, 350mm, 400mm

Drilling Depth:: Max.700m

Mobility:: Mobile

Local Service Location:: Philippines, Mexico, Russia

After-sales Service Provided:: Video technical support

Certification:: CE/ISO

Packaging & Delivery

Port

Qingdao/Shanghai

Product Description

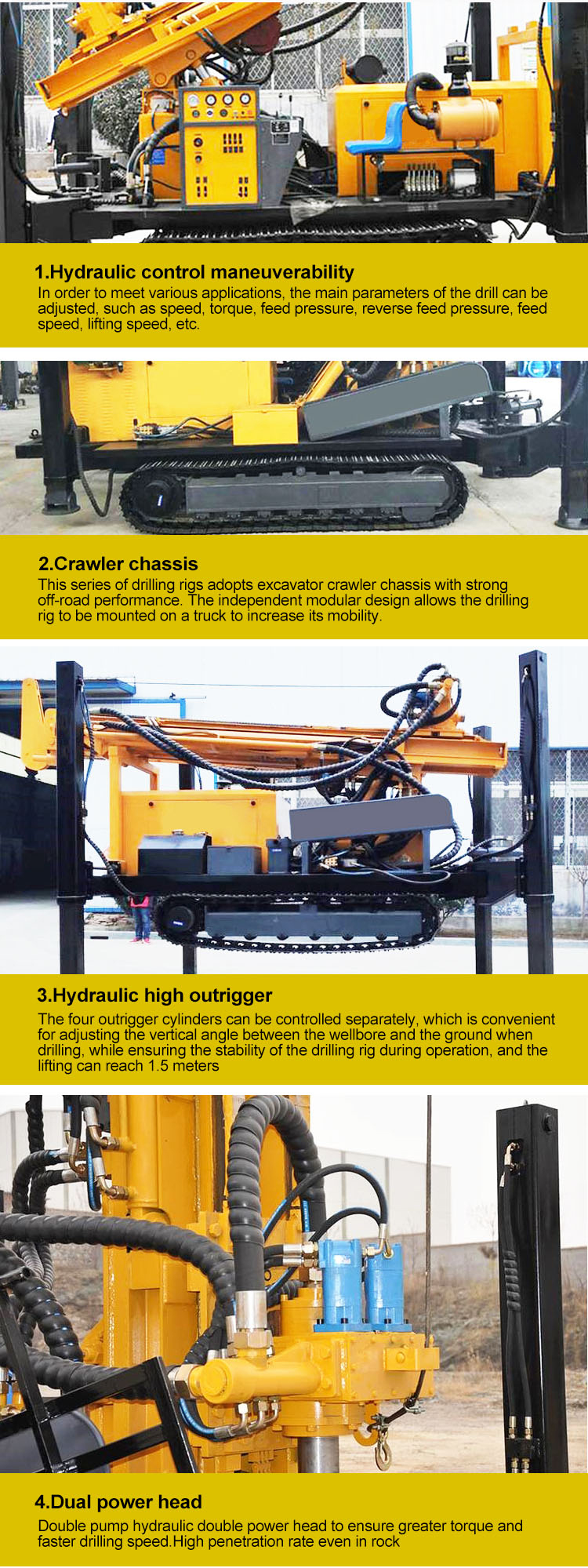

MAIN FEATURES OF WATER DRILLING MACHINE

1. Widely used in drilling, rock and soil drilling, geothermal drilling, mine exploration, offshore drilling, etc. The down-the-hole crawler drilling rig can be operated under any different working conditions through a pneumatic drilling rig driven by an air compressor, and has a high drilling speed even in the rock.

2. Perfect hydraulic control maneuverability. In order to meet various applications, the main parameters of the drill can be adjusted, such as speed, torque, feed pressure, reverse feed pressure, feed speed, lifting speed, etc.

3. Rotation, feeding and lifting are driven by the top. It is more convenient to change rods, reduces the time of rod changing, and is more conducive to subsequent drilling.

4. Multifunctional drilling The drilling rig can perform various drilling methods such as down-the-hole drilling, gas-proof circulation drilling, anchor drilling, rotary drilling, while drilling, and core drilling. Optional components can be added according to customer needs, such as mud pumps, foam pumps, generators and different types of drawworks.

5. Low operating cost The downhole drilling for rock has the lowest drilling cost and the highest work efficiency.

6. Tracked chassis with long-stroke jack cylinder The long-stroke jack cylinder is convenient for the truck to load itself during transportation, and the crawler has better maneuverability in the mud operation site.

7. The feed pressure can be adjusted to obtain the best feed force at different drilling depths.

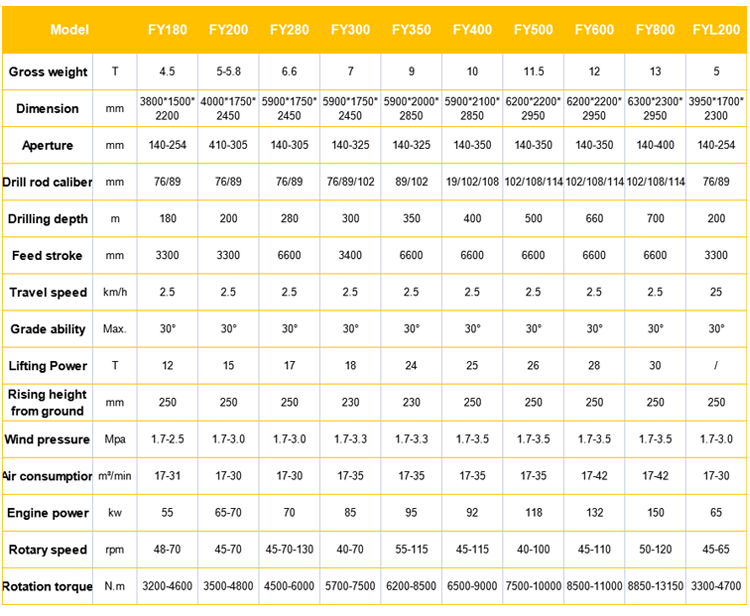

Technical Data

More Details

Shanghai Sollant Energy Saving Technology Co., Ltd. is located in Jiading disrtrict Shanghai City which is China's logistics
capital with great transportation convenience. Sollant is a comprehensive screw air compressor and drilling rig manufacturer that engaged in R & D,design, production and sales. It has a plant of 10,000 square meters, including a large production workshop, a comprehensivefirst-class exhibition hall and a testing laboratory.

Sollant has excellent mechanical engineering designers, an experienced staff team and a professional management team. The production concept focuses on energy-saving and is committed to perfecting and improving the technological process in order to get the core technology of super frequency energy-saving, achieving the characteristics of mute, durability, power saving and safety.
